BCX5616TC, BCX54 NPN Medium Power Transistor

DIODES

Description

BCX54 / 55 / 56 NPN MEDIUM POWER TRANSISTORS IN SOT89 .

📥 Download Datasheet

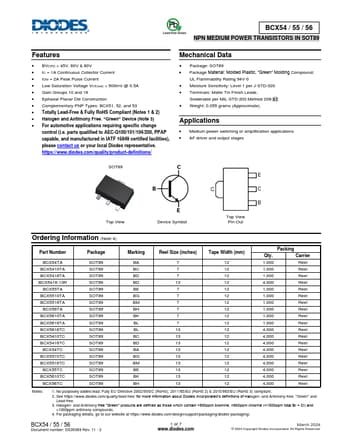

BCX5616TC Datasheet Preview — This datasheet PDF includes multiple part numbers: BCX5616TC, BCX54. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BCX5616TC, BCX54
Manufacturer: DIODES ↗
File Size: 366.57 KB
Datasheet: BCX54-Diodes.pdf
Description: NPN Medium Power Transistor
Note: This datasheet PDF includes multiple part numbers: BCX5616TC, BCX54.
Please refer to the document for exact specifications by model.

Features

* BVCEO > 45V, 60V & 80V
* IC = 1A Continuous Collector Current
* ICM = 2A Peak Pulse Current
* Low Saturation Voltage VCE(sat) < 500mV @ 0.5A
* Gain Groups 10 and 16
* Epitaxial Planar Die Construction
* Complementary PNP Types: BCX51, 52, and

Applications

* requiring specific change control (i. e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www. diodes. com/quality/product-definitions/ Mechanical Data
* Package: SOT89
