DET040WVNMCMIS-2A - LCD

The DET040WVNMCMIS-2A by DENSITRON is a LCD. Below is the official datasheet preview.

Datasheet Details

Part number	DET040WVNMCMIS-2A
Manufacturer	DENSITRON
File Size	2.21 MB
Description	LCD
Datasheet	DET040WVNMCMIS-2A-ETC.pdf
Additional preview pages of the DET040WVNMCMIS-2A datasheet.

DET040WVNMCMIS-2A Product details

Description

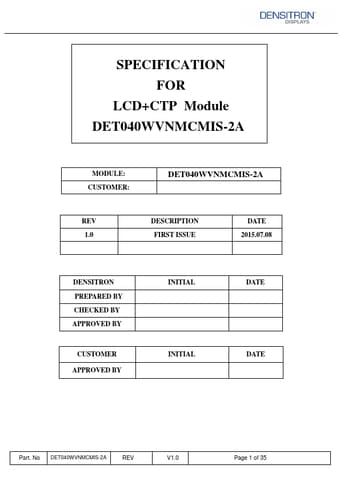

FIRST ISSUE DATE 2015.07.08 DENSITRON PREPARED BY CHECKED BY APPROVED BY CUSTOMER APPROVED BY INITIAL INITIAL DATE DATE Part.No DET040WVNMCMIS-2A REV V1.0 Page 1 of 35 Revision History Data Rev.No.Page 2014.07.08 V1.0 ALL Summary FIRST ISSUE Part.No DET040WVNMCMIS-2A REV V1.0 Page 2 of 35 Contents General Description ------------------------------------------------------------------------------------------------------4 1. Block Diagram -------------------------------------

Features

-Low Input Voltage: 3.3V (TYP) -Display Colors of TFT LCD: 65K/262K/16.7M colors - TFT Interface: 3SPI+16/18/24 bit RGB -CTP Interface: I2C General Information Items Specification Main Panel TFT Display area(AA) 51.84(H).
86.40(V) (4.0inch) CTP View area 52.84(H).
87.40(V) Driver element TFT active matrix Display colors 65K/262K/16.7M Number of pixels 480(RGB).
800 TFT Pixel arrangement RGB vertical stripe Pixel pitch 0.108(H).
0.108(V) Viewing angle ALL TFT Co.
