6A05G GLASS PASSIVATED RECTIFIER

6A05G Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS 6A05G THRU 6A10G TECHNICAL SPECIFICATIONS OF GLASS PASSIVATED RECTIFIER VOLTAGE RANGE - 50 to 100.

6A05G Features

* Low cost
* Low leakage
* Low forward voltage drop
* High current capability
* High surge current capability R-6 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band

📥 Download Datasheet

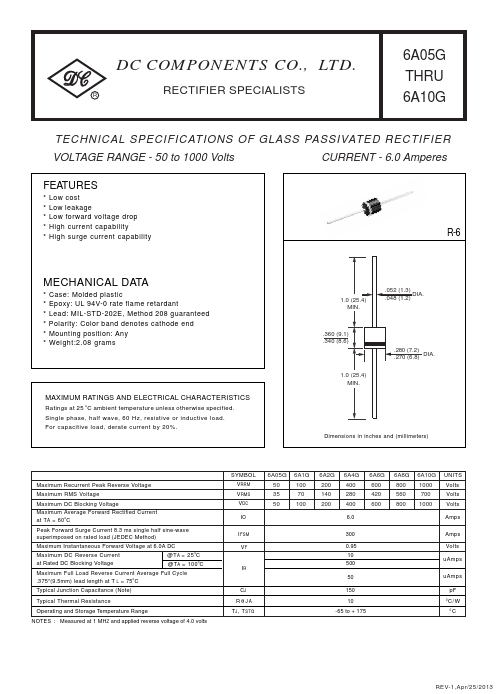

Preview of 6A05G PDF

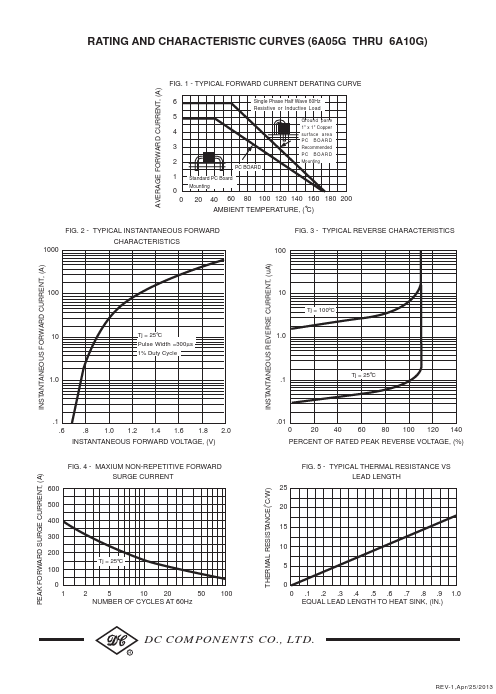

datasheet Preview Page 2

Datasheet Details

Part number
6A05G
Manufacturer
DC COMPONENTS
File Size
48.78 KB
Datasheet
6A05G-DCCOMPONENTS.pdf
Description
GLASS PASSIVATED RECTIFIER
