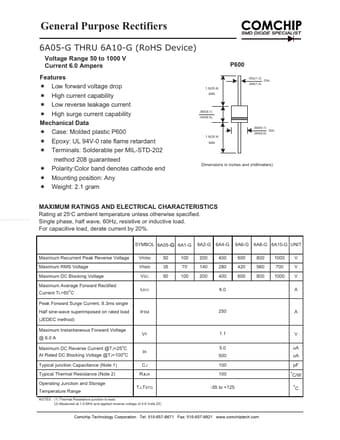

6A05-G - General Purpose Rectif

Comchip Technology

Datasheet Details

Low forward voltage drop High current capability Low reverse leakage current High surge current capability Mechanical Data Case: Molded plastic P600 Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202 method 208 guaranteed Polarity:Color band denotes cathode end Mounting position: Any Weight: 2.1 gram P600 .052(1.3) .048(1.2) 1.0(25.4) MIN. DIA. .360(9.1) .340(8.6) .360(9.1) .340(8.6) 1.0(25.4) MIN. DIA. Dimensions in inches and (millimeters).
