MBT2222A - SILICON PLANAR EPITAXIAL TRANSISTORS

Product Overview

📥 Download Datasheet

Datasheet preview – MBT2222A

Datasheet Details

Part number MBT2222A
Manufacturer DAIWA
File Size 37.90 KB
Description SILICON PLANAR EPITAXIAL TRANSISTORS
Datasheet download datasheet MBT2222A Datasheet
Note This datasheet PDF includes multiple part numbers: MBT2222A, MBT2222.
Please refer to the document for exact specifications by model.

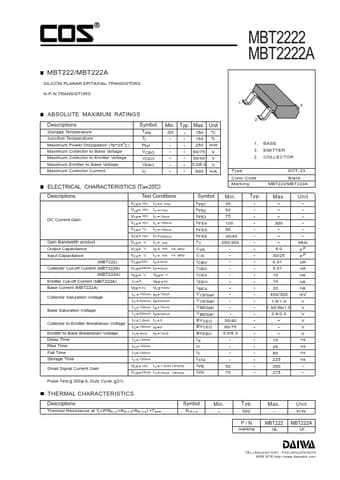

Additional preview pages of the MBT2222A datasheet.

Product details

Description

Storage Temperature Junction Temperature Maximum Power Dissipation (Ta=25 C) Maximum Collector to Base Voltage Maximum Collector to Emitter Voltage Maximum Emitter to Base Voltage Maximum Collector Current Symbol Tstg Tj Ptot VCBO VCEO VEBO IC Min.55 Typ.Max.Unit 150 C 150 C 250 mW 60/75 V 30/40 V 5.0/6.0 V 600 mA ELECTRICAL CHARACTERISTICS (Ta 25C) 2 1. BASE 3. EMITTER 2. COLLECTOR Type Color Code Marking SOT-23 Black MBT222/MBT222A Descriptions DC Current Gain Gain Bandwidth produ
