MBT2222 - SILICON PLANAR EPITAXIAL TRANSISTORS

Product Overview

📥 Download Datasheet

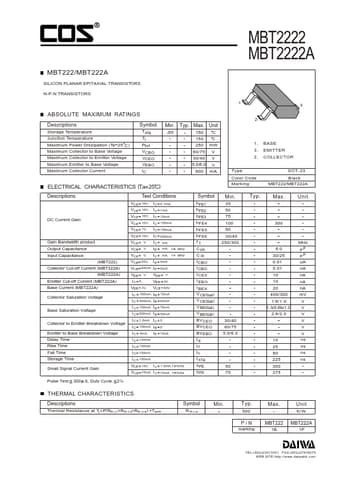

Datasheet preview – MBT2222

Datasheet Details

Part number MBT2222
Manufacturer DAIWA
File Size 37.90 KB
Description SILICON PLANAR EPITAXIAL TRANSISTORS
Datasheet download datasheet MBT2222 Datasheet
Additional preview pages of the MBT2222 datasheet.

Product details

Description

Storage Temperature Junction Temperature Maximum Power Dissipation (Ta=25 C) Maximum Collector to Base Voltage Maximum Collector to Emitter Voltage Maximum Emitter to Base Voltage Maximum Collector Current Symbol Tstg Tj Ptot VCBO VCEO VEBO IC Min.55 Typ.Max.Unit 150 C 150 C 250 mW 60/75 V 30/40 V 5.0/6.0 V 600 mA ELECTRICAL CHARACTERISTICS (Ta 25C) 2 1. BASE 3. EMITTER 2. COLLECTOR Type Color Code Marking SOT-23 Black MBT222/MBT222A Descriptions DC Current Gain Gain Bandwidth produ
