MTB09N03H8 - N-Channel Logic Level Enhancement Mode Power MOSFET

Product Overview

Cystech Electonics

Part number	MTB09N03H8
Manufacturer	Cystech Electonics
File Size	389.57 KB
Description	N-Channel Logic Level Enhancement Mode Power MOSFET
Datasheet	MTB09N03H8 Datasheet

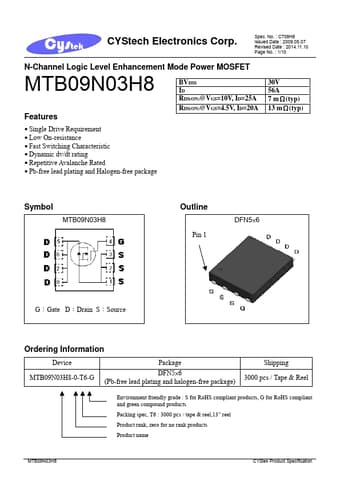

Additional preview pages of the MTB09N03H8 datasheet.

Single Drive Requirement.
Low On-resistance.
Fast Switching Characteristic.
Dynamic dv/dt rating.
Repetitive Avalanche Rated.
Pb-free lead plating and Halogen-free package 30V 56A 7 mΩ(typ) 13 mΩ(typ) Symbol MTB09N03H8 Outline Pin 1 DFN5×6 G：Gate D：Drain S：Source Ordering Information Device MTB09N03H8-0-T6-G Package DFN5×6 (Pb-free lead plating and halogen-free package) Shipping 3000 pcs / Tape & Reel Environment friendly grade : S.
