BTC1510T3 - NPN Epitaxial Planar Transistor

Name: BTC1510T3
SKU: BTC1510T3-612601

Cystech Electonics

📥 Download Datasheet

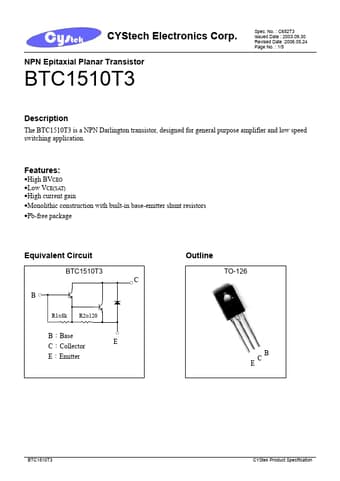

BTC1510T3 Datasheet Preview — Preview of BTC1510T3 PDF

Datasheet Details

Part number	BTC1510T3
Manufacturer	Cystech Electonics
File Size	179.59 KB
Description	NPN Epitaxial Planar Transistor
Datasheet	BTC1510T3_CystechElectonics.pdf

BTC1510T3 Product details

Description

The BTC1510T3 is a NPN Darlington transistor, designed for general purpose amplifier and low speed switching application. High BVCEO Low VCE(SAT) High current gain Monolithic construction with built-in base-emitter shunt resistors

Features

Equivalent Circuit BTC1510T3 C B R1≈8k R2≈120 Outline TO-126 B：Base C：Collector E：Emitter E E C B BTC1510T3 CYStek Product Specification www. DataSheet4U. com CYStech Electronics Corp. Absolute Maximum Ratings (Ta=25°C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation Junction Temperature Storage Temperature Note :.
1. Single Pulse Pw=100ms Spec. No. : C652T3 Issued Date : 2003.09.30 Revised Date : Page No. : 2/5 Sym.
