BTC1510E3 - NPN Epitaxial Planar Transistor

Name: BTC1510E3
SKU: BTC1510E3-612587

Cystech Electonics

📥 Download Datasheet

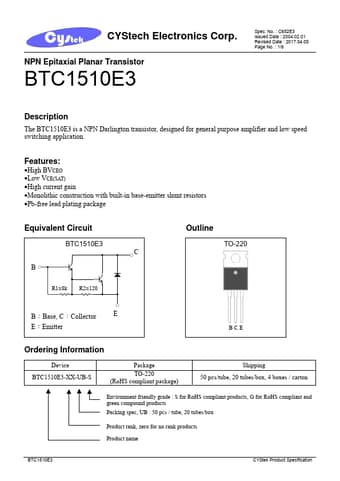

BTC1510E3 Datasheet Preview — Preview of BTC1510E3 PDF

Datasheet Details

Part number	BTC1510E3
Manufacturer	Cystech Electonics
File Size	224.89 KB
Description	NPN Epitaxial Planar Transistor
Datasheet	BTC1510E3_CystechElectonics.pdf

BTC1510E3 Product details

Description

The BTC1510E3 is a NPN Darlington transistor, designed for general purpose amplifier and low speed switching application. High BVCEO Low VCE(SAT) High current gain Monolithic construction with built-in base-emitter shunt resistors

Features

Equivalent Circuit BTC1510E3 C B R1≈8k R2≈120 Outline TO-220AB B：Base C：Collector E：Emitter E BCE BTC1510E3 CYStek Product Specification www. DataSheet4U. com CYStech Electronics Corp. Absolute Maximum Ratings (Ta=25°C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation Junction Temperature Storage Temperature Note :.
1. Single Pulse Pw=100ms Spec. No. : C652E3 Issued Date : 2004.02.01 Revised Date : 2004.06.03 Page No.
