BTB1580J3 - PNP Transistor

Cystech Electonics Corp

📥 Download Datasheet

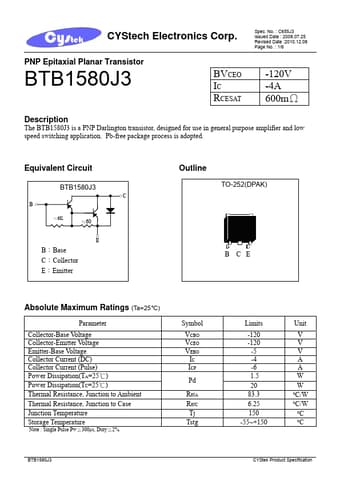

BTB1580J3 Datasheet Preview — Preview of BTB1580J3 PDF

Datasheet Details

Part number	BTB1580J3
Manufacturer	Cystech Electonics Corp
File Size	261.02 KB
Description	PNP Transistor
Datasheet	BTB1580J3_CystechElectonicsCorp.pdf

BTB1580J3 Product details

Description

BVCEO IC RCESAT -120V -4A 600mΩ The BTB1580J3 is a PNP Darlington transistor, designed for use in general purpose amplifier and low speed switching application.Pb-free package process is adopted.Equivalent Circuit BTB1580J3 C B ≒6K ≒ 8k Outline TO-252 ≒60 E B：Base C：Collector E：Emitter B C E Absolute Maximum Ratings (Ta=25°C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Power Dissipation(TA=25℃) Pow
