CY8C5266AXI-LP033, CY8C52LP - Programmable System-on-Chip

Cypress

The CY8C5266AXI-LP033 by Cypress is a Programmable System-on-Chip. Below is the official datasheet preview.

📥 Download Datasheet

CY8C5266AXI-LP033 Programmable System-on-Chip by Cypress - Datasheet Preview — Official preview page of the **CY8C5266AXI-LP033** Programmable System-on-Chip datasheet (Cypress).

Datasheet Details

Part number	CY8C5266AXI-LP033, CY8C52LP
Manufacturer	Cypress
File Size	3.76 MB
Description	Programmable System-on-Chip
Datasheet	CY8C52LP-Cypress.pdf
Note	This datasheet PDF includes multiple part numbers: CY8C5266AXI-LP033, CY8C52LP. Please refer to the document for exact specifications by model.

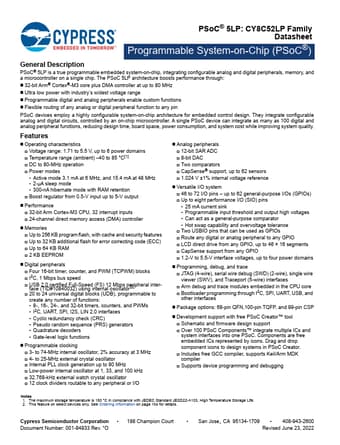

Additional preview pages of the CY8C5266AXI-LP033 datasheet.

CY8C5266AXI-LP033 Product details

Description

PSoC® 5LP is a true programmable embedded system-on-chip, integrating configurable analog and digital peripherals, memory, and a microcontroller on a single chip. 32-bit Arm® Cortex®-M3 core plus DMA controller at up to 80 MHz Ultra low power with industry’s widest voltage range Programmable digital and analog peripherals enable custom functions Flexible routing of any analog or digital peripheral function to any pin P

Features

Operating characteristics  Voltage range: 1.71 to 5.5 V, up to 6 power domains  Temperature range (ambient).
40 to 85 °C[1]  DC to 80-MHz operation  Power modes.
Active mode 3.1 mA at 6 MHz, and 15.4 mA at 48 MHz.
2-µA sleep mode.
300-nA hibernate mode with RAM retention  Boost regulator from 0.5-V input up to 5-V output.
Performance  32-bit Arm Cortex-M3 CPU, 32 interrupt inputs  24-channel direct memory access (DMA) controller.
Memor.
