CY8C5265AXI-LP082 - Programmable System-on-Chip

Download the CY8C5265AXI-LP082 datasheet PDF (CY8C52LP included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for programmable system-on-chip.

Description

PSoC® 5LP is a true programmable embedded system-on-chip, integrating configurable analog and digital peripherals, memory, and a microcontroller on a single chip.

32-bit Arm® Cortex®-M3 core plus DMA controller at up to 80 MHz Ultra l

Features

  • Operating characteristics  Voltage range: 1.71 to 5.5 V, up to 6 power domains  Temperature range (ambient).
  • 40 to 85 °C[1]  DC to 80-MHz operation  Power modes.
  • Active mode 3.1 mA at 6 MHz, and 15.4 mA at 48 MHz.
  • 2-µA sleep mode.
  • 300-nA hibernate mode with RAM retention  Boost regulator from 0.5-V input up to 5-V output.
  • Performance  32-bit Arm Cortex-M3 CPU, 32 interrupt inputs  24-channel direct memory access (DMA) controller.
  • Memor.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CY8C52LP-Cypress.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • CY8C52 - Programmable System-on-Chip (Cypress Semiconductor)
  • CY8C53 - Programmable System-on-Chip(PSoC) (Cypress Semiconductor)
  • CY8C54 - Programmable System-on-Chip (Cypress Semiconductor)
  • CY8C54LP - Programmable System-on-Chip (Cypress Semiconductor)
  • CY8C56LP - Programmable System-on-Chip (Cypress Semiconductor)
  • CY8C58LP - Programmable SoC (Cypress Semiconductor)
  • CY8C20046 - CapSense Applications (Cypress Semiconductor)
  • CY8C20066 - CapSense Applications (Cypress Semiconductor)
  • CY8C20110 - Configurable GPIOs (Cypress Semiconductor)
  • CY8C20111 - One Button and Two Button Capacitive Controllers (Cypress Semiconductor)
Other Datasheets by Cypress

Full PDF Text Transcription

Click to expand full text

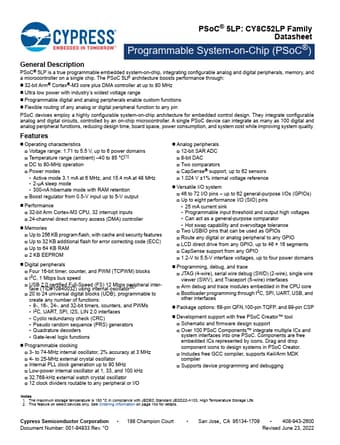

PSoC® 5LP: CY8C52LP Family Datasheet Programmable System-on-Chip (PSoC®) General Description PSoC® 5LP is a true programmable embedded system-on-chip, integrating configurable analog and digital peripherals, memory, and a microcontroller on a single chip. The PSoC 5LP architecture boosts performance through:  32-bit Arm® Cortex®-M3 core plus DMA controller at up to 80 MHz  Ultra low power with industry’s widest voltage range  Programmable digital and analog peripherals enable custom functions  Flexible routing of any analog or digital peripheral function to any pin PSoC devices employ a highly configurable system-on-chip architecture for embedded control design. They integrate configurable analog and digital circuits, controlled by an on-chip microcontroller.
