CYUSB2024 - USB and Mass Storage Peripheral Controller

Product Overview

Cypress Semiconductor

📥 Download Datasheet

CYUSB2024 USB and Mass Storage Peripheral Controller by Cypress Semiconductor - Datasheet Preview — Datasheet preview – CYUSB2024

Datasheet Details

Part number	CYUSB2024
Manufacturer	Cypress Semiconductor
File Size	396.16 KB
Description	USB and Mass Storage Peripheral Controller
Datasheet	CYUSB2024 Datasheet

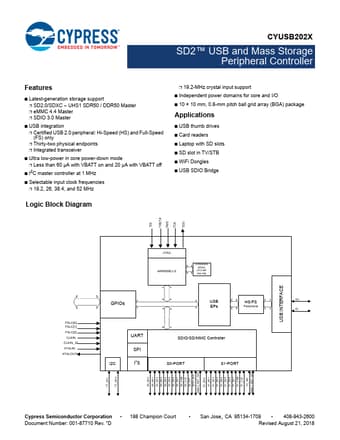

Additional preview pages of the CYUSB2024 datasheet.

Product details

Features

Latest-generation storage support.
SD2.0/SDXC.
UHS1 SDR50 / DDR50 Master.
eMMC 4.4 Master.
SDIO 3.0 Master.
USB integration.
Certified USB 2.0 peripheral: Hi-Speed (HS), and Full-Speed (FS) only).
Thirty-two physical endpoints.
Integrated transceiver.
Accessory charger adaptor (ACA) support.
Ultra low-power in core power-down mode.
Less than 60 µA with VBATT on and 20 µA with VBATT off.
I2C master controller at 1 MHz.
Se.
