CY7C67300 - EZ-Host Programmable Embedded USB Host/Peripheral Controller

Cypress Semiconductor

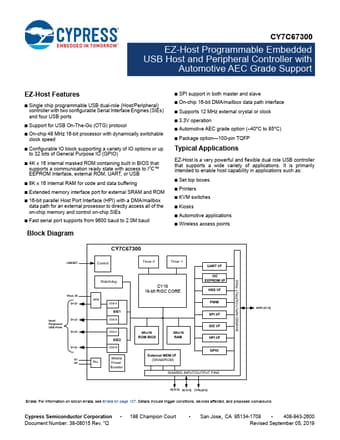

CY7C67300 Datasheet Preview — Preview of CY7C67300 PDF

Datasheet Details

Part number	CY7C67300
Manufacturer	Cypress Semiconductor
File Size	0.99 MB
Description	EZ-Host Programmable Embedded USB Host/Peripheral Controller
Datasheet	CY7C67300_CypressSemiconductor.pdf

CY7C67300 Product details

Description

3 USB Interface 5 OTG Interface 6 External Memory Interface 6 General Purpose IO Interface (GPIO) 9 UART Interface [3] 9 I2C EEPROM Interface [4] 9 Serial Peripheral Interface 9 High-Speed Serial Interface 10 Programmable Pulse/PWM Interface 10 Host Port Interface 11 IDE Interface 11 Charge Pump Interface 12 Booster Interface 13 Crystal Interface 13 Boot Configuration Interface 14 Operational Modes 14 Power Savings and Reset Description 15 Power Saving Mode Description 15 Sle

Features

Single chip programmable USB dual-role (Host/Peripheral) controller with two configurable Serial Interface Engines (SIEs) and four USB ports.
Support for USB On-The-Go (OTG) protocol.
On-chip 48 MHz 16-bit processor with dynamically switchable clock speed.
Configurable IO block supporting a variety of IO options or up to 32 bits of General Purpose IO (GPIO).
4K x 16 internal masked ROM containing built in BIOS that supports a communication ready state with access to I2C.
