CY7C60223 - Low-Voltage Microcontroller

Product Overview

Cypress Semiconductor

Part number	CY7C60223
Manufacturer	Cypress Semiconductor
File Size	149.29 KB
Description	Low-Voltage Microcontroller
Datasheet	CY7C60223 Datasheet
Note	This datasheet PDF includes multiple part numbers: CY7C60223, CY7C60123. Please refer to the document for exact specifications by model.

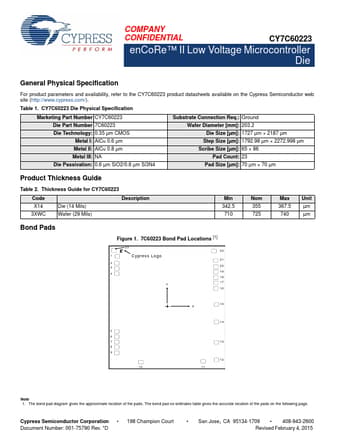

Additional preview pages of the CY7C60223 datasheet.

enCoRe II low-voltage (enCoRe II LV).
enhanced component reduction.
Internal crystalless oscillator with support for optional external clock or external crystal or resonator.
Configurable I/O for real world interface without external components.
Enhanced 8-bit microcontroller.
Harvard architecture.
M8C CPU speed up to 12 MHz or sourced by an external crystal, resonator, or clock signal.
Internal memory.
256 bytes of random access memory (RAM).
