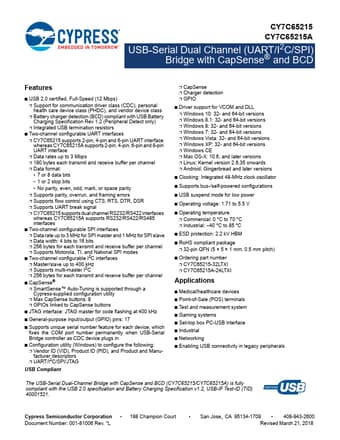

CY7C65215 - USB-Serial Dual-Channel Bridge

Cypress Semiconductor

Datasheet Details

Part number	CY7C65215
Manufacturer	Cypress Semiconductor
File Size	590.49 KB
Description	USB-Serial Dual-Channel Bridge
Datasheet	CY7C65215-CypressSemiconductor.pdf

USB 2.0 certified, Full-Speed (12 Mbps).
Support for communication driver class (CDC), personal health care device class (PHDC), and vendor device class.
Battery charger detection (BCD) compliant with USB Battery Charging Specification Rev 1.2 (Peripheral Detect only).
Integrated USB termination resistors.
Two-channel configurable UART interfaces.
CY7C65215 supports 2-pin, 4-pin and 6-pin UART interface whereas CY7C65215A supports 2-pin, 4-pin, 6-pin and 8-pin UART.
