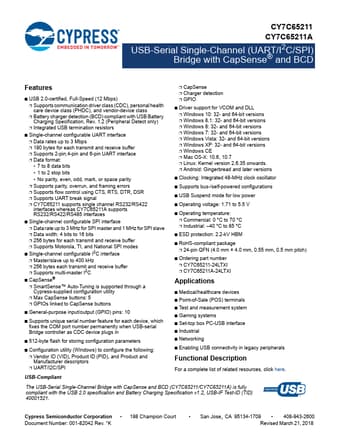

CY7C65211A, CY7C65211 - USB-Serial Single-Channel Bridge

Cypress Semiconductor

Datasheet Details

Part number	CY7C65211A, CY7C65211
Manufacturer	Cypress Semiconductor
File Size	539.19 KB
Description	USB-Serial Single-Channel Bridge
Datasheet	CY7C65211-CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C65211A, CY7C65211. Please refer to the document for exact specifications by model.

USB 2.0-certified, Full-Speed (12 Mbps).
Supports communication driver class (CDC), personal health care device class (PHDC), and vendor-device class.
Battery charger detection (BCD) compliant with USB Battery Charging Specification, Rev. 1.2 (Peripheral Detect only).
Integrated USB termination resistors.
Single-channel configurable UART interface.
Data rates up to 3 Mbps.
190 bytes for each transmit and receive buffer.
Supports 2-pin,4-pin and 6-pin UART.
