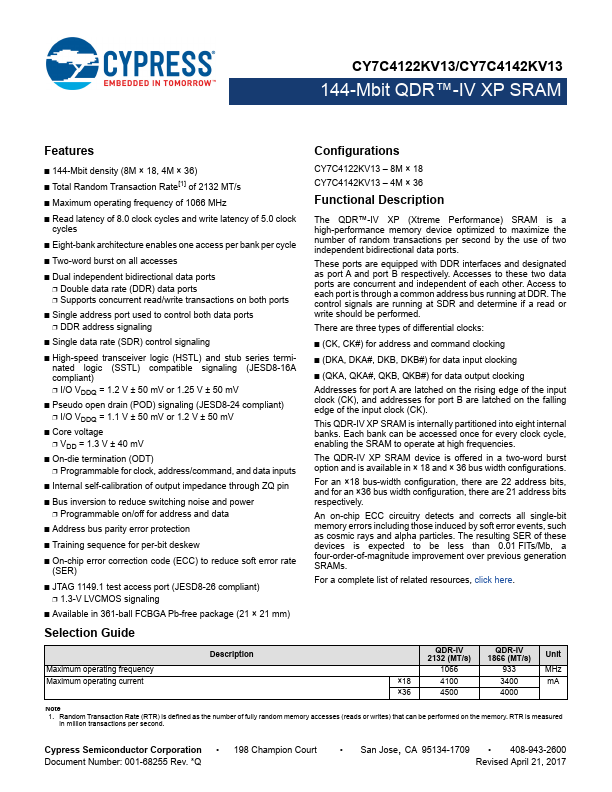

CY7C4142KV13, CY7C4122KV13 - 144-Mbit QDR-IV XP SRAM

Name: CY7C4142KV13
SKU: CY7C4142KV13-1101329

Cypress Semiconductor

📥 Download Datasheet

CY7C4142KV13 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7C4142KV13, CY7C4122KV13. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CY7C4142KV13, CY7C4122KV13
Manufacturer	Cypress Semiconductor
File Size	838.81 KB
Description	144-Mbit QDR-IV XP SRAM
Datasheet	CY7C4122KV13-CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C4142KV13, CY7C4122KV13. Please refer to the document for exact specifications by model.

CY7C4142KV13 Product details

Description

The QDR™-IV XP (Xtreme Performance) SRAM is a high-performance memory device optimized to maximize the number of random transactions per second by the use of two independent bidirectional data ports.

Features

e 144-Mbit QDR™-IV XP SRAM Configurations.
144-Mbit density (8M × 18, 4M × 36).
Total Random Transaction Rate[1] of 2132 MT/s.
Maximum operating frequency of 1066 MHz.
Read latency of 8.0 clock cycles and write latency of 5.0 clock cycles.
Eight-bank architecture enables one access per bank per cycle.
Two-word burst on all accesses.
Dual independent bidirectional data ports.
Double data rate (DDR) data ports.
Supports concurrent read/write transacti.
