CY7C261 - 8K x 8 Power-Switched and Reprogrammable PROM

Download the CY7C261 datasheet PDF. This datasheet also covers the CY7 variant, as both devices belong to the same 8k x 8 power-switched and reprogrammable prom family and are provided as variant models within a single manufacturer datasheet.

Description

The CY7C261, CY7C263, and CY7C264 are high-performance 8192-word by 8-bit CMOS PROMs.

Features

  • CMOS for optimum speed/power.
  • Windowed for reprogrammability.
  • High speed.
  • 20 ns (Commercial).
  • 25 ns (Military).
  • Low power.
  • 660 mW (Commercial).
  • 770 mW (Military).
  • Super low standby power (7C261).
  • Less than 220 mW when deselected.
  • Fast access: 20 ns EPROM technology 100% programmable Slim 300-mil or standard 600-mil packaging available 5V ± 10% VCC, commercia.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CY7-C261.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CY7C225 512 x 8 Registered PROM Cypress
CY7C277 32K x 8 Reprogrammable Registered PROM Cypress
CY7C008 64K/128K x 8/9 Dual-Port Static RAM Cypress
CY7C008V 3.3V 64K/128K x 8/9 Dual-Port Static RAM Cypress
CY7C009 64K/128K x 8/9 Dual-Port Static RAM Cypress

Other Datasheets by Cypress (Infineon)

Part Number Description
CY7C263 8K x 8 Power-Switched and Reprogrammable PROM
CY7C264 8K x 8 Power-Switched and Reprogrammable PROM
CY7C2642KV18 144-Mbit QDR II+ SRAM Two-Word Burst Architecture
CY7C2644KV18 144-Mbit QDR II+ SRAM Two-Word Burst Architecture
CY7C265 8K x 8 Registered PROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

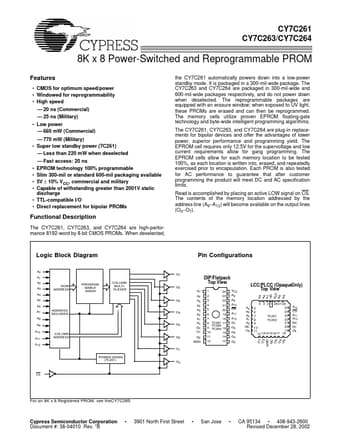

View original datasheet text
1 CY7C261 CY7C263/CY7C264 8K x 8 Power-Switched and Reprogrammable PROM Features • CMOS for optimum speed/power • Windowed for reprogrammability • High speed — 20 ns (Commercial) — 25 ns (Military) • Low power — 660 mW (Commercial) — 770 mW (Military) • Super low standby power (7C261) — Less than 220 mW when deselected • • • • — Fast access: 20 ns EPROM technology 100% programmable Slim 300-mil or standard 600-mil packaging available 5V ± 10% VCC, commercial and military Capable of withstanding greater than 2001V static discharge • TTL-compatible I/O • Direct replacement for bipolar PROMs the CY7C261 automatically powers down into a low-power standby mode. It is packaged in a 300-mil-wide package.
