CY7C1380D - 18-Mbit Pipelined SRAM

Cypress Semiconductor

📥 Download Datasheet

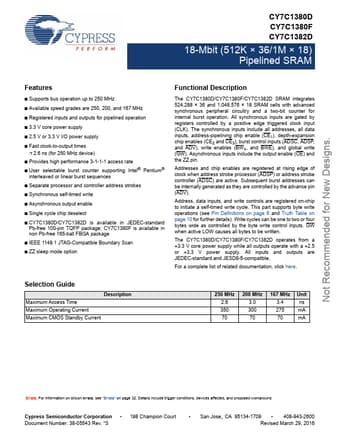

CY7C1380D Datasheet Preview — Preview of CY7C1380D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY7C1380D
Manufacturer	Cypress Semiconductor
File Size	1.30 MB
Description	18-Mbit Pipelined SRAM
Datasheet	CY7C1380D-CypressSemiconductor.pdf

CY7C1380D Product details

Description

The CY7C1380D/

Features

Supports bus operation up to 250 MHz.
Available speed grades are 250, 200, and 167 MHz.
Registered inputs and outputs for pipelined operation.
3.3 V core power supply.
2.5 V or 3.3 V I/O power supply.
Fast clock-to-output times.
2.6 ns (for 250 MHz device).
Provides high performance 3-1-1-1 access rate.
User selectable burst counter supporting Intel® Pentium® interleaved or linear burst sequences.
Separate processor and controller address strob.
