CY7C1380CV25 - (CY7C1380CV25 / CY7C1382CV25) 512K x 36/1M x 18 Pipelined SRAM

Cypress Semiconductor

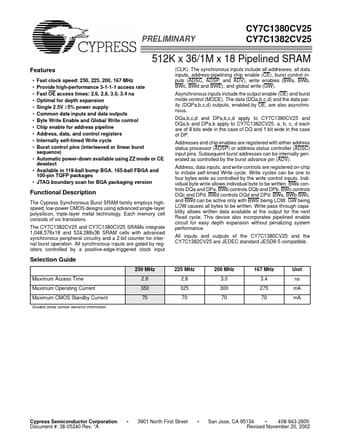

CY7C1380CV25 Datasheet Preview — Preview of CY7C1380CV25 PDF

Datasheet Details

Part number	CY7C1380CV25
Manufacturer	Cypress Semiconductor
File Size	545.93 KB
Description	(CY7C1380CV25 / CY7C1382CV25) 512K x 36/1M x 18 Pipelined SRAM
Datasheet	CY7C1380CV25_CypressSemiconductor.pdf

CY7C1380CV25 Product details

Description

The Cypress Synchronous Burst SRAM family employs highspeed, low-power CMOS designs using advanced single-layer polysilicon, triple-layer metal technology.

Features

Fast clock speed: 250, 225, 200, 167 MHz Provide high-performance 3-1-1-1 access rate Fast OE access times: 2.6, 2.8, 3.0, 3.4 ns Optimal for depth expansion Single 2.5V ±5% power supply Common data inputs and data outputs Byte Write Enable and Global Write control Chip enable for address pipeline Address, data, and control registers Internally self-timed Write cycle Burst control pins (.
