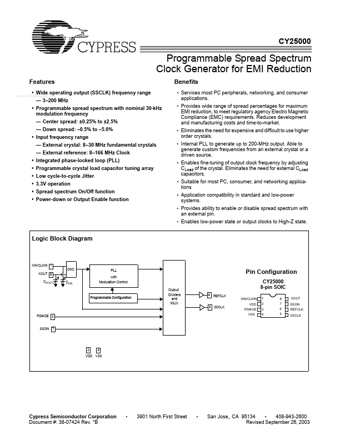

CY25000 Datasheet (Cypress Semiconductor) - Programmable Spread Spectrum Clock Generator

CY25000, Programmable Spread Spectrum Clock Generator

Pin 1 2 3 4 5 6 7 8 Name XIN/CLKIN VDD PD#/OE VSS SSCLK REFCLK SSON XOUT 3.3V voltage supply.

Power-down pin.

Active LOW.

If PD# = 0, SSCLK and REFCLK are three-stated.

Output Enable pin: Active HIGH.

If OE = 1, SSCLK and REFCLK are enabled.

User has the option of choosing either PD# or OE function

CY25000 Features

* www.DataSheet4U.net Benefits

* Services most PC peripherals, networking, and consumer applications.

* Provides wide range of spread percentages for maximum EMI reduction, to meet regulatory agency Electro Magnetic Compliance (EMC) requirements. Reduces development and manufacturing
