CY25404 - Quad PLL Programmable Clock Generator

Features

  • Four fully-integrated phase-locked loops (PLLs).
  • Input frequency range.
  • External crystal: 8 to 48 MHz.
  • External reference: 8 to 166 MHz clock.
  • Wide operating output frequency range.
  • 3 to 166 MHz.
  • Programmable spread spectrum with center and down spread option and lexmark and linear modulation profiles.
  • Selectable VDD supply voltage options:.
  • 2.5 V, 3.0 V, and 3.3 V.
  • Selectable output clock voltages, independent of VDD supply:.
  • 1.8 V, 2.5 V,.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CY25402 Two-PLL Programmable Clock Generator Cypress
CY25403 Three-PLL Programmable Clock Generator Cypress
CY25422 Two-PLL Programmable Clock Generator Cypress
CY25423 Three-PLL Programmable Clock Generator Cypress
CY2545 Quad-PLL Programmable Spread Spectrum Clock Generator Cypress

Other Datasheets by Cypress (Infineon)

Part Number Description
CY2544 Quad PLL Programmable Clock Generator
CY2546 Quad PLL Programmable Clock Generator
CY2547 Quad-PLL Programmable Spread Spectrum Clock Generator
CY2548 Quad PLL Programmable Clock Generator
CY25482 Two-PLL Programmable Clock Generator

Full PDF Text Transcription

Click to expand full text

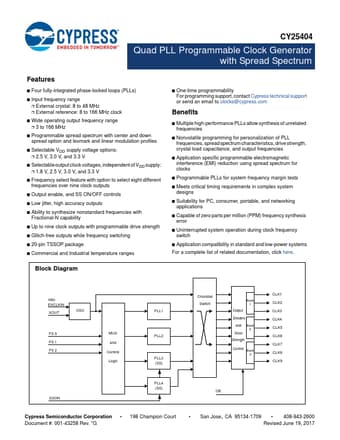

CY25404 Quad PLL Programmable Clock Generator with Spread Spectrum Features ■ Four fully-integrated phase-locked loops (PLLs) ■ Input frequency range ❐ External crystal: 8 to 48 MHz ❐ External reference: 8 to 166 MHz clock ■ Wide operating output frequency range ❐ 3 to 166 MHz ■ Programmable spread spectrum with center and down spread option and lexmark and linear modulation profiles ■ Selectable VDD supply voltage options: ❐ 2.5 V, 3.0 V, and 3.3 V ■ Selectable output clock voltages, independent of VDD supply: ❐ 1.8 V, 2.5 V, 3.0 V, and 3.
