CY2313ANZ - 3.3V SDRAM Buffer for Desktop PCs with 3 DIMMs

Cypress Semiconductor

📥 Download Datasheet

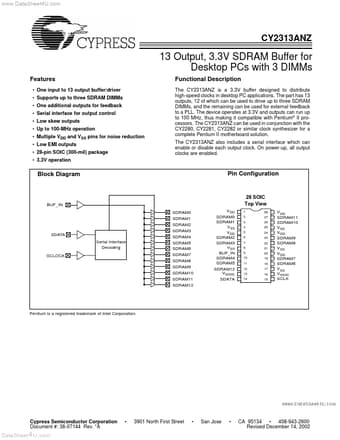

CY2313ANZ Datasheet Preview — Preview of CY2313ANZ PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY2313ANZ
Manufacturer	Cypress Semiconductor
File Size	239.19 KB
Description	3.3V SDRAM Buffer for Desktop PCs with 3 DIMMs
Datasheet	CY2313ANZ_CypressSemiconductor.pdf

CY2313ANZ Product details

Description

The CY2313ANZ is a 3.3V buffer designed to distribute high-speed clocks in desktop PC applications.

Features

One input to 13 output buffer/driver.
Supports up to three SDRAM DIMMs.
One additional outputs for feedback.
Serial interface for output control.
Low skew outputs.
Up to 100-MHz operation.
Multiple VDD and VSS pins for noise reduction.
Low EMI outputs.
28-pin SOIC (300-mil) package.
3.3V operation Functional.
