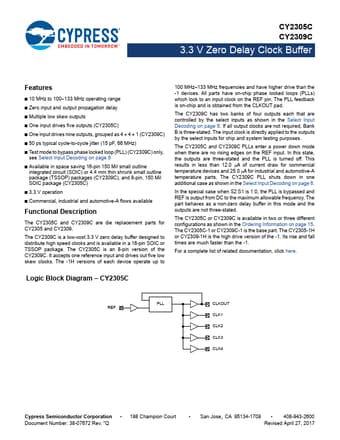

CY2305C - Zero Delay Buffers

Cypress Semiconductor

Datasheet Details

Part number	CY2305C
Manufacturer	Cypress Semiconductor
File Size	455.42 KB
Description	Zero Delay Buffers
Datasheet	CY2305C_CypressSemiconductor.pdf

The CY2305C and CY2309C are die replacement parts for CY2305 and CY2309.

10 MHz to 100.
133 MHz operating range.
Zero input and output propagation delay.
Multiple low skew outputs.
One input drives five outputs (CY2305C).
One input drives nine outputs, grouped as 4 + 4 + 1 (CY2309C).
50 ps typical cycle-to-cycle jitter (15 pF, 66 MHz).
Test mode to bypass phase locked loop (PLL) (CY2309C) only, see Select Input Decoding on page 6.
Available in space saving 16-pin 150 Mil small outline integrated circuit (SOIC) or 4.4 mm.
