CY22393-Automotive - Three-PLL Serial-Programmable Flash-Programmable Clock Generator

Cypress Semiconductor

📥 Download Datasheet

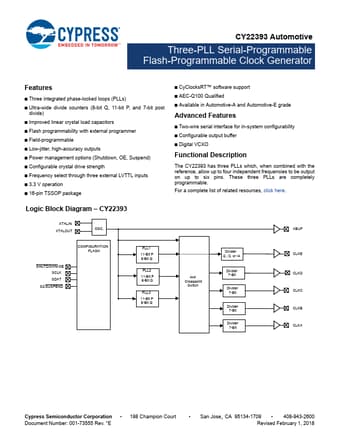

CY22393-Automotive Datasheet Preview — Preview of CY22393-Automotive PDF

Datasheet Details

Part number	CY22393-Automotive
Manufacturer	Cypress Semiconductor
File Size	567.11 KB
Description	Three-PLL Serial-Programmable Flash-Programmable Clock Generator
Datasheet	CY22393-Automotive-CypressSemiconductor.pdf

CY22393-Automotive Product details

Description

The CY22393 has three PLLs which, when combined with the reference, allow up to four independent frequencies to be output on up to six pins. CY22393 XTALIN XTALOUT OSC.XBUF SHUTDOWN/OE SCLK SDAT S2/SUSPEND CONFIGURATION FLASH PLL1 11-Bit P 8-Bit Q PLL2 11-Bit P 8-Bit Q PLL3 11-Bit P 8-Bit Q 4x4 Crosspoint Switch Divider /2, /3, or /4 Divider 7-Bit Divider 7-

Features

Three integrated phase-locked loops (PLLs).
Ultra-wide divide counters (8-bit Q, 11-bit P, and 7-bit post divide).
Improved linear crystal load capacitors.
Flash programmability with external programmer.
Field-programmable.
Low-jitter, high-accuracy outputs.
Power management options (Shutdown, OE, Suspend).
Configurable crystal drive strength.
Frequency select through three external LVTTL inputs.
3.3 V operation.
16-pin TSSOP package.
