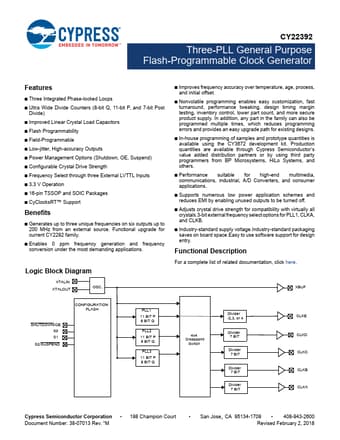

CY22392 Datasheet (Cypress Semiconductor) - Three-PLL General Purpose Flash Programmable Clock Generator

CY22392, Three-PLL General Purpose Flash Programmable Clock Generator

For a complete list of related documentation, click here.

XBUF SHUTDOWN/OE S0 S1 S2/SUSPEND CONFIGURATION FLASH PLL1 11 BIT P 8 BIT Q PLL2 11 BIT P 8 BIT Q PLL3 11 BIT P 8 BIT Q 4x4 Crosspoint Switch Divider /2,3, or 4 Divider 7 BIT Divider 7 BIT Divider 7 BIT Divider 7 BIT CLKE CLKD CLKC CLKB

CY22392 Features

* Three Integrated Phase-locked Loops

* Ultra Wide Divide Counters (8-bit Q, 11-bit P, and 7-bit Post Divide)

* Improved Linear Crystal Load Capacitors

* Flash Programmability

* Field-Programmable

* Low-jitter, High-accuracy Outputs

* Power Management Options (Shutdown, O
