CY14B064I - 64-Kbit (8 K x 8) Serial (I2C) nvSRAM

Name: CY14B064I
SKU: CY14B064I-703595

Cypress Semiconductor

The CY14B064I by Cypress Semiconductor is a 64-Kbit (8 K x 8) Serial (I2C) nvSRAM. Below is the official datasheet preview.

Datasheet Details

Part number	CY14B064I
Manufacturer	Cypress Semiconductor
File Size	1.74 MB
Description	64-Kbit (8 K x 8) Serial (I2C) nvSRAM
Datasheet	CY14B064I_CypressSemiconductor.pdf

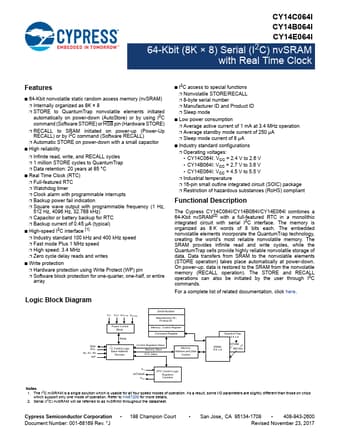

Additional preview pages of the CY14B064I datasheet.

64-Kbit nonvolatile static random access memory (nvSRAM).
Internally organized as 8 K × 8.
STORE to QuantumTrap nonvolatile elements initiated automatically on power-down (AutoStore) or by using I2C command (Software STORE) or HSB pin (Hardware STORE).
RECALL to SRAM initiated on power-up (Power-Up RECALL) or by I2C command (Software RECALL).
Automatic STORE on power-down with a small capacitor.
High reliability.
Infinite read, write, and RECAL.
