CY14B101L - 1-Mbit (128K x 8) nvSRAM

Description

The Cypress CY14B101L is a fast static RAM with a nonvolatile element in each memory cell.

The embedded nonvolatile elements incorporate QuantumTrap technology producing, the world’s most reliable nonvolatile memory.

Features

  • 25 ns, 35 ns, and 45 ns access times.
  • “Hands-off” automatic STORE on power down with only a small capacitor.
  • STORE to QuantumTrapTM nonvolatile elements is initiated by software, device pin, or AutostoreTM on power down.
  • RECALL to SRAM initiated by software or power up www. DataSheet4U. com.
  • Infinite READ, WRITE, and RECALL cycles.
  • 10 mA typical ICC at 200 ns cycle time.
  • 200,000 STORE cycles to quantum trap.
  • 20-year data rete.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CY14BPS Quartz Crystal Low Profile HC49S Leaded Crystal Crystek Corporation
CY14BS Quartz Crystal Low Profile HC49S Leaded Crystal Crystek Corporation
CY14BSMD Quartz Crystal Surface Mount HC49S SMD Crystal Crystek Corporation
CY14ACS Quartz Crystal Low Profile HC49S Leaded Crystal Crystek Corporation
CY14ACSMD Quartz Crystal Surface Mount HC49S SMD Crystal Crystek Corporation

Other Datasheets by Cypress (Infineon)

Part Number Description
CY14B101LA 1-Mbit nvSRAM
CY14B101I 1-Mbit (128 K x 8) Serial (I2C) nvSRAM
CY14B101J 1-Mbit (128 K X 8) Serial (I2C) nvSRAM
CY14B101K 1 Mbit (128K x 8) nvSRAM
CY14B101KA 1-Mbit nvSRAM

Full PDF Text Transcription

Click to expand full text

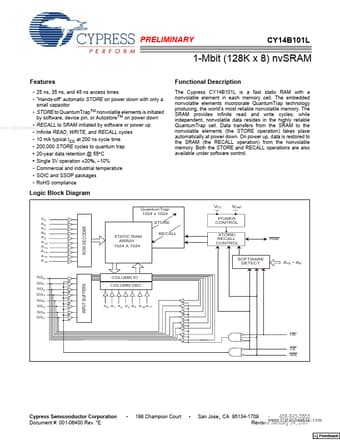

PRELIMINARY CY14B101L 1-Mbit (128K x 8) nvSRAM Features • 25 ns, 35 ns, and 45 ns access times • “Hands-off” automatic STORE on power down with only a small capacitor • STORE to QuantumTrapTM nonvolatile elements is initiated by software, device pin, or AutostoreTM on power down • RECALL to SRAM initiated by software or power up www.DataSheet4U.com • Infinite READ, WRITE, and RECALL cycles • 10 mA typical ICC at 200 ns cycle time • 200,000 STORE cycles to quantum trap • 20-year data retention @ 55°C • Single 3V operation +20%, –10% • Commercial and industrial temperature • SOIC and SSOP packages • RoHS compliance Functional Description The Cypress CY14B101L is a fast static RAM with a nonvolatile element in each memory cell.
