KSD203AC2 Datasheet (Cosmo) - SOLID STATE RELAY

KSD203AC2, SOLID STATE RELAY

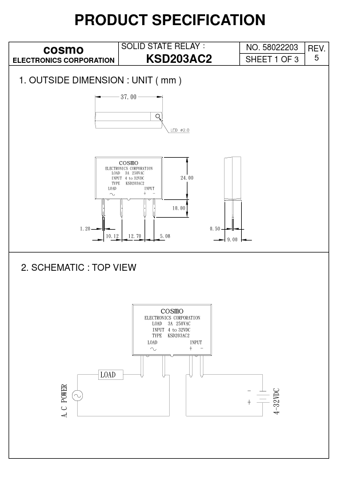

PRODUCT SPECIFICATION DATE: 05/27/11' cosmo SOLID STATE RELAY： ELECTRONICS CORPORATION KSD203AC2 NO.

58022203 REV.

SHEET 1 OF 2 4 1.

OUTSIDE DIMENSION : UNIT ( mm ) 37.00 cosmo ELECTRONICS CORPORATION LOAD 3A 250VAC INPUT 4 to 32VDC TYPE KSD203AC2 LOAD INPUT +- 24.00 10.00 1.20 10.12 12.70 5.08 0.50 9.00 2.

SCHEMATIC : TOP VIEW LOAD cosmo ELECTRONICS CORPORATION LOAD 3A 250VAC INPUT 4 to 32VDC TYPE KSD203AC2 LOAD INPUT +- + A.C POWER 4-32VDC PRODUCT SPECIFICATION
