DR125-R47-R - Shielded Inductors

Cooper Bussmann

📥 Download Datasheet

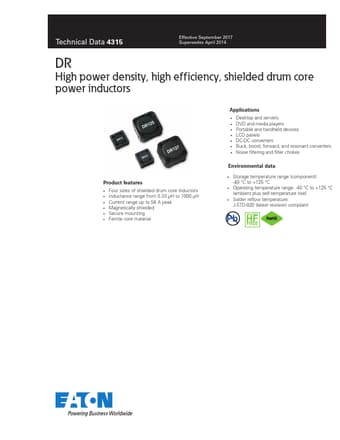

DR125-R47-R Datasheet Preview — Preview of DR125-R47-R PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DR125-R47-R
Manufacturer	Cooper Bussmann
File Size	838.25 KB
Description	Shielded Inductors
Datasheet	DR125-R47-R_CooperBussmann.pdf

DR125-R47-R Product details

Features

Four sizes of shielded drum core inductors.
Inductance range from 0.33 µH to 1000 µH.
Current range up to 56 A peak.
Magnetically shielded.
Secure mounting.
Ferrite core material.
