DR124 - Drum core power inductors

EATON

📥 Download Datasheet

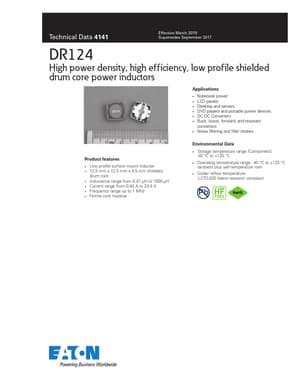

DR124 Datasheet Preview — Preview of DR124 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DR124
Manufacturer	EATON
File Size	647.63 KB
Description	Drum core power inductors
Datasheet	DR124-EATON.pdf

DR124 Product details

Features

Low profile surface mount inductor.
12.5 mm x 12.5 mm x 4.5 mm shielded drum core.
Inductance range from 0.47 µH to 1000 µH.
Current range from 0.44 A to 24.4 A.
Frequency range up to 1 MHz.
Ferrite core material Environmental Data.
Storage temperature range (Component): -40 °C to +125 °C.
Operating temperature range: -40 °C to +125 °C (ambient plus self-temperature rise).
Solder reflow temperature: J-STD-020 (lat.
