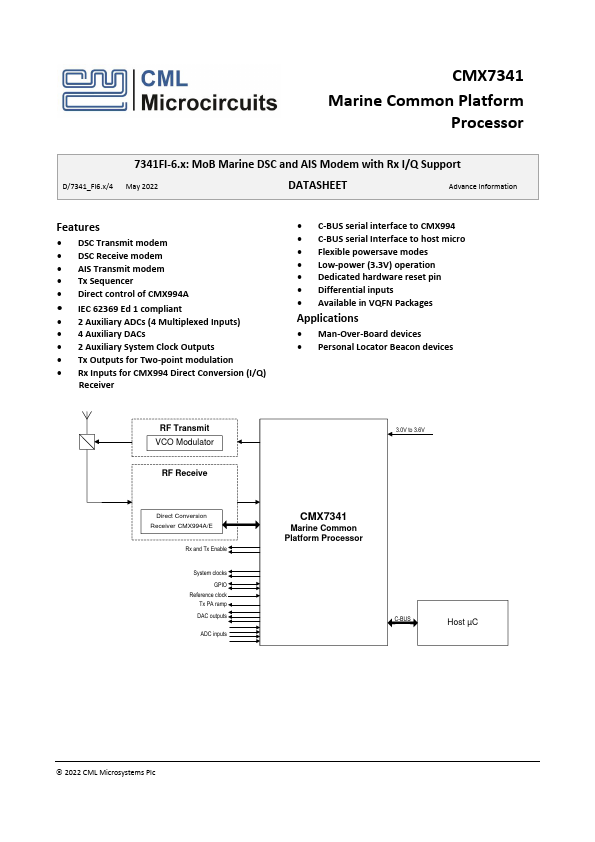

CMX7341, CMX7241 - Marine Common Platform Processor

Name: CMX7341
SKU: CMX7341-963021

Consumer Microcircuits Limited

📥 Download Datasheet

CMX7341 Datasheet Preview — This datasheet PDF includes multiple part numbers: CMX7341, CMX7241. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CMX7341, CMX7241
Manufacturer	Consumer Microcircuits Limited
File Size	2.14 MB
Description	Marine Common Platform Processor
Datasheet	CMX7241-ConsumerMicrocircuitsLimited.pdf
Note	This datasheet PDF includes multiple part numbers: CMX7341, CMX7241. Please refer to the document for exact specifications by model.

CMX7341 Product details

Description

The 7341FI-6.x Function Image™ (FI) implements the digital data modem functionality to support Man-OverBoard and Personal Locator Beacon devices that require both DSC and AIS signalling.

Features

DSC Transmit modem.
DSC Receive modem.
AIS Transmit modem.
Tx Sequencer.
Direct control of CMX994A.
IEC 62369 Ed 1 compliant.
2 Auxiliary ADCs (4 Multiplexed Inputs).
4 Auxiliary DACs.
2 Auxiliary System Clock Outputs.
Tx Outputs for Two-point modulation.
Rx Inputs for CMX994 Direct Conversion (I/Q) Receiver.
C-BUS serial interface to CMX994.
C-BUS serial Interface to host micro.
