SMA-007-62 - RP-SMA FEMALE EDGE MOUNT

📥 Download Datasheet

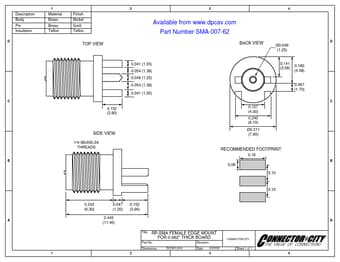

Preview of SMA-007-62 PDF

Datasheet Details

Part number SMA-007-62
Manufacturer Connector City
File Size 145.66 KB
Description RP-SMA FEMALE EDGE MOUNT
Datasheet download datasheet SMA-007-62-ConnectorCity.pdf

SMA-007-62 Product details

Description

Body Pin Insulation D Material Brass Brass Teflon Finish Nickel Gold Teflon Available from www.dpcav.com Part Number SMA-007-62 BACK VIEW Ø0.049 (1.25) 0.141 (3.58) D TOP VIEW 0.041 (1.05) 0.054 (1.38) 0.049 (1.25) 0.054 (1.38) 0.041 (1.05) C 0.180 (4.58) 0.067 (1.70) C 0.152 (3.90) 0.157 (4.00) 0.240 (6.10) SIDE VIEW 1/4-36UNS-2A THREADS B Ø0.311 (7.90) RECOMMENDED FOOTPRINT 0.16 B 0.06 0.10 0.10 0.242 (6.30) A 0.047 (1.20) 0.445 (11.40) 0.152 (3.90) A Title RP-SMA FEMALE EDGE
