CX25871, CX25870 - (CX25870 / CX25871) Video Encoder

Conexant Systems

📥 Download Datasheet

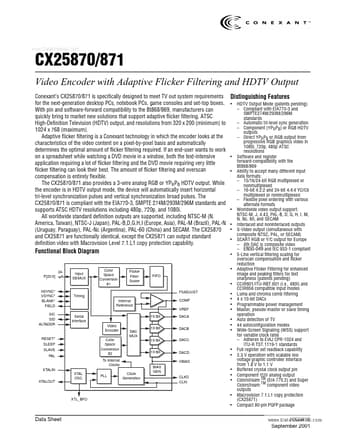

CX25871 Datasheet Preview — This datasheet PDF includes multiple part numbers: CX25871, CX25870. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CX25871, CX25870
Manufacturer: Conexant Systems
File Size: 4.03 MB
Datasheet: CX25870_ConexantSystems.pdf
Description: (CX25870 / CX25871) Video Encoder
Note: This datasheet PDF includes multiple part numbers: CX25871, CX25870.
Please refer to the document for exact specifications by model.

CX25871 Product details

Description

at any time, without notice.

Features

HDTV Output Mode (patents pending).
Compliant with EIA770-3 and SMPTE274M/293M/296M standards.
Automatic tri-level sync generation.
Component (YPRPB) or RGB HDTV outputs.
Direct YPRPB or RGB output from progressive RGB graphics video in 1080i, 720p, 480p ATSC resolutions Software and register forward-compatibility with the Bt868/869 Ability to accept many different input data formats:.
15/16/24-bit RGB multiplexed or nonmultiplexed.
