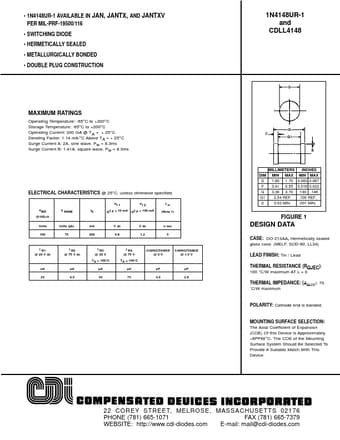

1N4148UR-1 Datasheet Preview — Preview of 1N4148UR-1 PDF

Datasheet Details

Part number:

1N4148UR-1

Manufacturer:

Compensated Deuices Incorporated

File Size:

33.33 KB

Description:

Switching diode.

1N4148UR-1, SWITCHING DIODE

1N4148UR-1 AVAILABLE IN JAN, JANTX, AND JANTXV PER MIL-PRF-19500/116 SWITCHING DIODE HERMETICALLY SEALED METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION 1N4148UR-1 and CDLL4148 MAXIMUM RATINGS Operating Temperature: -65°C to +200°C Storage Temperature: -65°C to +200°C Operating Current: 200 mA @ TA = + 25°C Derating Factor: 1.14 mA/°C Above TA = + 25°C Surge Current A: 2A, sine wave, Pw = 8.3ms Surge Current B: 1.41A, square wave, Pw = 8.3ms E
