1N4131-1 - LOW CURRENT OPERATION AT 250 uA

📥 Download Datasheet

Datasheet Details

Part number 1N4131-1
Manufacturer Compensated Deuices Incorporated
File Size 98.40 KB
Description LOW CURRENT OPERATION AT 250 uA
Datasheet download datasheet 1N4131-1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N4131-1 Low Noise Zener Diode Aeroflex
1N4131-1 Low Noise Zener Diode MA-COM
1N4131-1 500mW Metallurgically Bonded Glass Zener Diodes Microsemi
1N4131-1 Low Noise Zener Diode VPT
1N4131 SILICON ZENER DIODE Central Semiconductor

Other Datasheets by Compensated Deuices Incorporated

Part Number Description
1N4130-1 LOW CURRENT OPERATION AT 250 uA
1N4132-1 LOW CURRENT OPERATION AT 250 uA
1N4133-1 LOW CURRENT OPERATION AT 250 uA
1N4134-1 LOW CURRENT OPERATION AT 250 uA
1N4135-1 LOW CURRENT OPERATION AT 250 uA

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

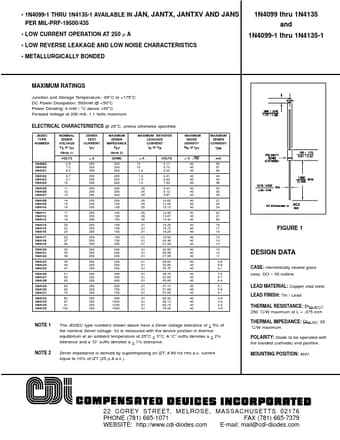

• 1N4099-1 THRU 1N4135-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/435 • LOW CURRENT OPERATION AT 250 µ A • LOW REVERSE LEAKAGE AND LOW NOISE CHARACTERISTICS • METALLURGICALLY BONDED 1N4099 thru 1N4135 and 1N4099-1 thru 1N4135-1 MAXIMUM RATINGS Junction and Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C Forward Voltage at 200 mA: 1.1 Volts maximum ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
