UF3004-G, UF3001-G - Ultra Fast Recovery Rectifiers

Name: UF3004-G
SKU: UF3004-G-1336972

Comchip

The UF3004-G by Comchip is a Ultra Fast Recovery Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	UF3004-G, UF3001-G
Manufacturer	Comchip
File Size	66.50 KB
Description	Ultra Fast Recovery Rectifiers
Datasheet	UF3001-G-Comchip.pdf
Note	This datasheet PDF includes multiple part numbers: UF3004-G, UF3001-G. Please refer to the document for exact specifications by model.

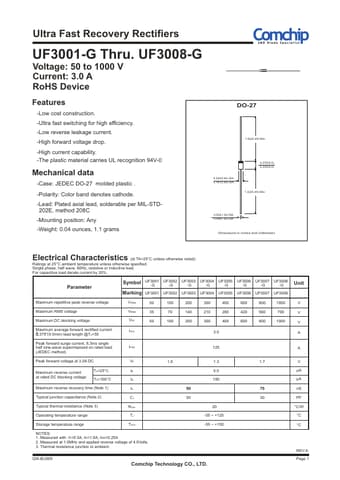

Additional preview pages of the UF3004-G datasheet.

-Low cost construction. -Ultra fast switching for high efficiency. -Low reverse leakage current. -High forward voltage drop. -High current capability. -The plastic material carries UL recognition 94V-0 Mechanical data -Case: JEDEC DO-27 molded plastic . -Polarity: Color band denotes cathode. -Lead: Plated axial lead, solderable per MIL-STD202E, method 208C -Mounting position: Any -Weight: 0.04 ounces, 1.1 grams DO-27 1.0(25.40) Min. 0.220(5.60) DIA. 0.197(5.00) DIA. 0.375(9.5) 0.335(8.5) 1.0.
