CJ3401-HF - MOSFET

Product Overview

Comchip

Part number	CJ3401-HF
Manufacturer	Comchip
File Size	111.49 KB
Description	MOSFET
Datasheet	CJ3401-HF Datasheet

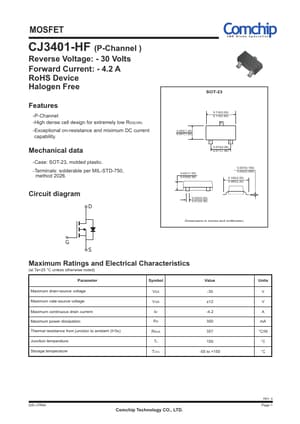

Additional preview pages of the CJ3401-HF datasheet.

-P-Channel -High dense cell design for extremely low RDS(ON) -Exceptional on-resistance and miximum DC current capability. Mechanical data -Case: SOT-23, molded plastic. -Terminals: solderable per MIL-STD-750, method 2026. Circuit diagram D Comchip SMD Diode Specialist SOT-23 0.055(1.40) 0.047(1.20) 0.118(3.00) 0.110(2.80) 3 12 0.079(2.00) 0.071(1.80) 0.041(1.05) 0.035(0.90) 0.007(0.150) 0.002(0.080) 0.100(2.55) 0.089(2.25) 0.020(0.50) 0.012(0.30) Dimensions in inches and (millimeter) G.
