CJ3400-HF - MOSFET

Product Overview

Comchip

Part number	CJ3400-HF
Manufacturer	Comchip
File Size	273.34 KB
Description	MOSFET
Datasheet	CJ3400-HF Datasheet

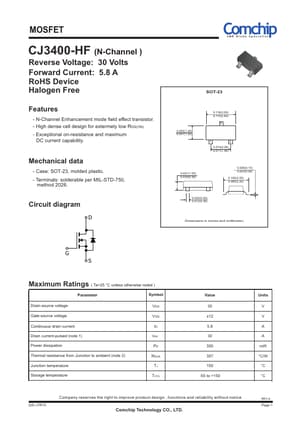

Additional preview pages of the CJ3400-HF datasheet.

- N-Channel Enhancement mode field effect transistor. - High dense cell design for extermely low RDS(ON) - Exceptional on-resistance and maximum DC current capability. Mechanical data - Case: SOT-23, molded plastic. - Terminals: solderable per MIL-STD-750, method 2026. Circuit diagram D Comchip SMD Diode Specialist SOT-23 0.055(1.40) 0.047(1.20) 0.118(3.00) 0.110(2.80) 3 12 0.079(2.00) 0.071(1.80) 0.041(1.05) 0.035(0.90) 0.006(0.15) 0.003(0.08) 0.100(2.55) 0.089(2.25) 0.020(0.50) 0.012(0.
