BC846A-G, BC848A-G Small Signal Transistor

BC846A-G Description

Small Signal Transistor BC846A-G Thru.BC848C-G (NPN) RoHS Device .

BC846A-G Features

* -Power dissipation O PCM: 0.20W (@TA=25 C) -Collector current ICM: 0.1A -Collector-base voltage VCBO: BC846=80V BC847=50V BC848=30V -Operating and storage junction temperature range: TJ, TSTG= -65 to +150 OC SOT-23 0.118(3.00) 0.110(2.80) 3 0.055(1.40) 0.047(1.20) 1 0.079(2.00) 0.071(1.80) 2 Me

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC846A-G, BC848A-G. Please refer to the document for exact specifications by model.

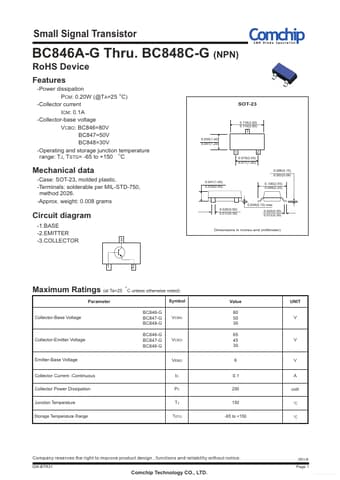

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC846A-G, BC848A-G
Manufacturer
Comchip
File Size
168.62 KB
Datasheet
BC848A-G_Comchip.pdf
Description
Small Signal Transistor
Note
This datasheet PDF includes multiple part numbers: BC846A-G, BC848A-G.
Please refer to the document for exact specifications by model.
