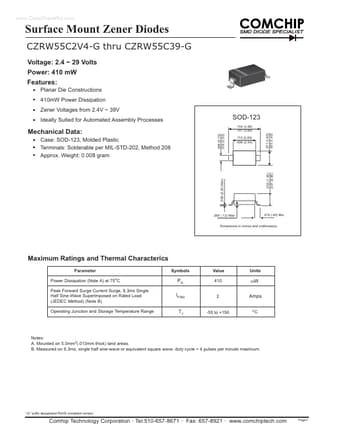

CZRW55C6Vx-G, CZRW55C2V4-G - (CZRW55C2V4-G -CZRW55C39-G) Surface Mount Zener Diodes

Comchip Technology

Datasheet Details

Part number	CZRW55C6Vx-G, CZRW55C2V4-G
Manufacturer	Comchip Technology
File Size	112.65 KB
Description	(CZRW55C2V4-G -CZRW55C39-G) Surface Mount Zener Diodes
Datasheet	CZRW55C2V4-G_ComchipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: CZRW55C6Vx-G, CZRW55C2V4-G. Please refer to the document for exact specifications by model.

Planar Die Constructions 410mW Power Dissipation Zener Voltages from 2.4V ~ 39V Ideally Suited for Automated Assembly Processes .028 (0.70) .019 (0.50) SOD-123 .154 (3.90) .141 (3.60) .110 (2.80) .098 (2.50) .071 (1.80) .055 (1.40) .016 (.40) Min. o Mechanical Data: Case: SOD-123, Molded Plastic Terminals: Solderable per MIL-STD-202, Method 208 Approx. Weight: 0.008 gram .005 (.12) Max. Dimensions in inches and (millimeters) Maximum Ratings and Thermal Characterics Parameter Power Dissipat.
