CZRA4733-HF, CZRA4728-HF - SMD Zener Diode

Comchip

Datasheet Details

Part number	CZRA4733-HF, CZRA4728-HF
Manufacturer	Comchip
File Size	277.07 KB
Description	SMD Zener Diode

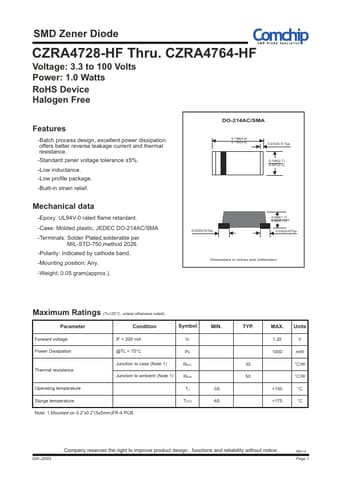

Datasheet	CZRA4728-HF-Comchip.pdf
Note	This datasheet PDF includes multiple part numbers: CZRA4733-HF, CZRA4728-HF. Please refer to the document for exact specifications by model.

-Batch process design, excellent power dissipation offers better reverse leakage current and thermal resistance. -Standard zener voltage tolerance ±5%. -Low inductance. -Low profile package. -Built-in strain relief. Mechanical data -Epoxy: UL94V-0 rated flame retardant. -Case: Molded plastic, JEDEC DO-214AC/SMA -Terminals: Solder Plated,solderable per MIL-STD-750,method 2026. -Polarity: Indicated by cathode band. -Mounting position: Any. -Weight: 0.05 gram(approx. ). DO-214AC/SMA 0.196(4.9) 0.1.
