CZRW5236 - Surface Mount Zener Diodes

Comchip Technology

📥 Download Datasheet

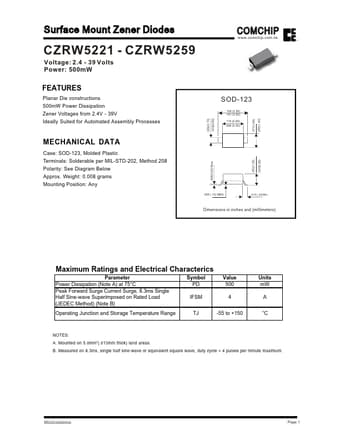

CZRW5236 Datasheet Preview — Preview of CZRW5236 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CZRW5236
Manufacturer	Comchip Technology
File Size	77.03 KB
Description	Surface Mount Zener Diodes
Datasheet	CZRW5236_ComchipTechnology.pdf

CZRW5236 Product details

Features

Planar Die constructions 500mW Power Dissipation Zener Voltages from 2.4V - 39V . 028(0.70) . 019(0.50) .154 (3.90) .141 (3.60) .110 (2.80) .098 (2.50) SOD-123 . 071(1.80) . 053(1.35) . 055(1.40) Ideally Suited for Automated Assembly Processes.
