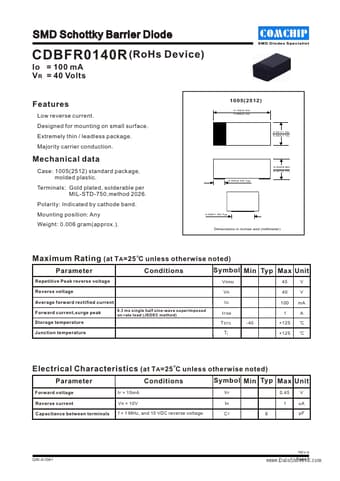

CDBFR0140R - SMD Schottky Barrier Diode

Comchip Technology

Datasheet Details

Part number	CDBFR0140R
Manufacturer	Comchip Technology
File Size	76.00 KB
Description	SMD Schottky Barrier Diode
Datasheet	CDBFR0140R_ComchipTechnology.pdf

Low reverse current. Designed for mounting on small surface. Extremely thin / leadless package. Majority carrier conduction. 0.051(1.30) 0.043(1.10) Mechanical data 0.035(0.90) Case: 1005(2512) standard package, molded plastic. Terminals: Gold plated, solderable per MIL-STD-750,method 2026. Polarity: Indicated by cathode band. Mounting position: Any Weight: 0.006 gram(approx. ). 0.040(1.00) Typ. 0.027(0.70) 0.020(0.50) Typ. Dimensions in inches and (millimeter) Maximum Rating (at T A =25 C.
