G6424-A Mag Amp Toroids

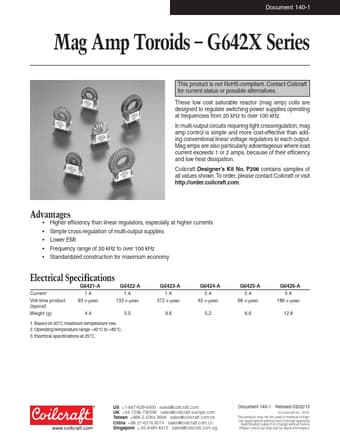

Document 140-1 Mag Amp Toroids G642X Series This product is not RoHS-compliant. Contact Coilcraft for current status or possible alternatives. These low cost saturable reactor (mag amp) coils are designed to regulate switching power supplies operating at frequencies from 20 kHz to over 100 kHz. In multi-output circuits requiring tight crossregulation, mag amp control is simple and more cost-effective than adding conventional linear voltage regulators to each output. Mag amps are also .

G6421-A-Coilcraft.pdf

G6424-A Datasheet Preview — This datasheet PDF includes multiple part numbers: G6424-A, G6421-A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

G6424-A, G6421-A

Manufacturer:

Coilcraft

File Size:

348.21 KB

Description:

Mag amp toroids.

Note:

This datasheet PDF includes multiple part numbers: G6424-A, G6421-A.
Please refer to the document for exact specifications by model.
