G6401 - P-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet

Datasheet Details

Part number G6401
Manufacturer GTM
File Size 438.75 KB
Description P-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet download datasheet G6401 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
G6421-A Mag Amp Toroids Coilcraft
G6422-A Mag Amp Toroids Coilcraft
G6423-A Mag Amp Toroids Coilcraft
G6424-A Mag Amp Toroids Coilcraft
G6425-A Mag Amp Toroids Coilcraft

Other Datasheets by GTM

Part Number Description
G6402 P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Full PDF Text Transcription

Click to expand full text

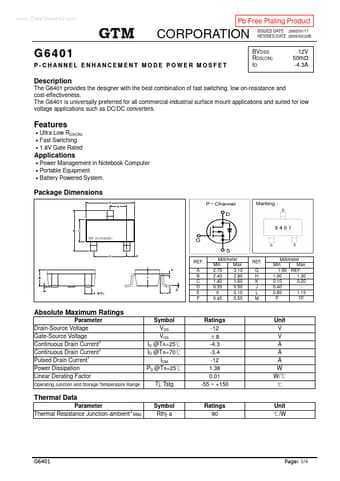

www.DataSheet4U.com Pb Free Plating Product CORPORATION G6401 P-CHANNEL ENHANCEMENT MODE POWER MOSFET ISSUED DATE :2005/01/17 REVISED DATE :2005/03/22B BVDSS RDS(ON) ID -12V 50m -4.3A The G6401 provides the designer with the best combination of fast switching, low on-resistance and cost-effectiveness. The G6401 is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. Description Features Applications Ultra Low RDS(ON) Fast Switching 1.8V Gate Rated Power Management in Notebook Computer Portable Equipment Battery Powered System. Package Dimensions REF. A B C D E F Millimeter Min. Max. 2.70 3.10 2.40 2.80 1.40 1.60 0.35 0.50 0 0.10 0.45 0.55 REF. G H K J L M Millimeter Min. Max. 1.
