CPC5610 - (CPC5610 / CPC5611) Silicon Data Access Arrangement

Clare

The CPC5610 by Clare is a (CPC5610 / CPC5611) Silicon Data Access Arrangement. Below is the official datasheet preview.

📥 Download Datasheet

CPC5610 (CPC5610 / CPC5611) Silicon Data Access Arrangement by Clare - Datasheet Preview — Official preview page of the **CPC5610** (CPC5610 / CPC5611) Silicon Data Access Arrangement datasheet (Clare).

Datasheet Details

Part number	CPC5610
Manufacturer	Clare
File Size	438.37 KB
Description	(CPC5610 / CPC5611) Silicon Data Access Arrangement
Datasheet	CPC5610_Clare.pdf

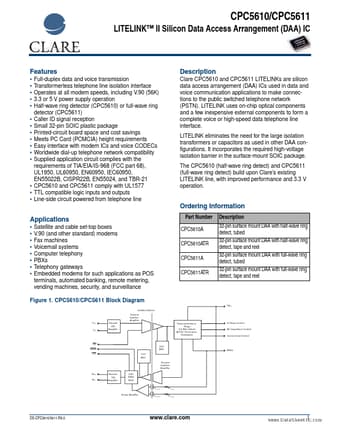

Additional preview pages of the CPC5610 datasheet.

CPC5610 Product details

Description

Clare CPC5610 and CPC5611 LITELINKs are silicon data access arrangement (DAA) ICs used in data and voice communication applications to make connections to the public switched telephone network (PSTN).

Features

Full-duplex data and voice transmission Transformerless telephone line isolation interface Operates at all modem speeds, including V.90 (56K) 3.3 or 5 V power supply operation Half-wave ring detector (CPC5610) or full-wave ring detector (CPC5611) Caller ID signal reception Small 32-pin SOIC plastic package Printed-circuit board space and cost savings Meets PC Card (PCMCIA) heig.
