CS4392 - 24-Bit / 192kHz Stereo DAC

Cirrus Logic

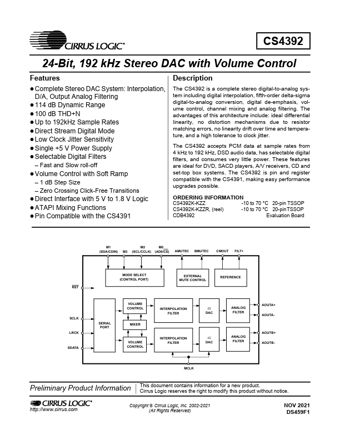

CS4392 Datasheet Preview — Preview of CS4392 PDF

Datasheet Details

Part number	CS4392
Manufacturer	Cirrus Logic
File Size	1.85 MB
Description	24-Bit / 192kHz Stereo DAC
Datasheet	CS4392_CirrusLogic.pdf

CS4392 Product details

Description

The CS4392 is a complete stereo digital-to-analog system including digital interpolation, fifth-order delta-sigma digital-to-analog conversion, digital de-emphasis, volume control, channel mixing and analog filtering.

Features

Complete Stereo DAC System: Interpolation, D/A, Output Analog Filtering.
114 dB Dynamic Range.
100 dB THD+N.
Up to 192kHz Sample Rates.
Direct Stream Digital Mode.
Low Clock Jitter Sensitivity.
Single +5 V Power Supply.
Selectable Digital Filters.
Fast and Slow roll-off.
Volume Control with Soft Ramp.
1 dB Step Size.
Zero Crossing Click-Free Transitions.
Direct Interface with 5 V to 1.8 V Logic.
ATAPI Mixing Funct.
