CS4391A - 192 kHz Stereo DAC

Cirrus Logic

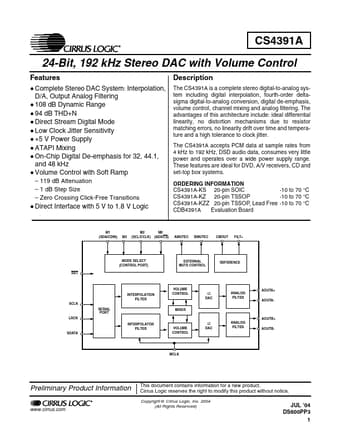

CS4391A Datasheet Preview — Preview of CS4391A PDF

Datasheet Details

Part number	CS4391A
Manufacturer	Cirrus Logic
File Size	525.87 KB
Description	192 kHz Stereo DAC
Datasheet	CS4391A-CirrusLogic.pdf

CS4391A Product details

Description

The CS4391A is a complete stereo digital-to-analog system including digital interpolation, fourth-order deltasigma digital-to-analog conversion, digital de-emphasis, volume control, channel mixing and analog filtering.

Features

Complete Stereo DAC System: Interpolation, D/A, Output Analog Filtering 108 dB Dynamic Range 94 dB THD+N Direct Stream Digital Mode Low Clock Jitter Sensitivity +5 V Power Supply ATAPI Mixing On-Chip Digital De-emphasis for 32, 44.1, and 48 kHz Volume Control with Soft Ramp.
119 dB Attenuation.
1 dB Step Size.
Zero Crossing Click-Free Transitions Direct Interface with 5 V to 1.8 V Logic I.
